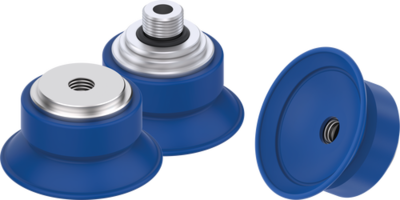

Flat suction cup
Series ZFCF

  • Diameter: 30 mm–125 mm
  • Optimum geometry
    • For thin, oily metal plates and car body panels
    • Profile structure on the underside of the suction cup for increased friction between the workpiece and vacuum suction cup
    • Safe handling with high-speed applications without deforming the sheet metal
    • Highly durable and resistant thanks to the material characteristics of polyurethane
  • Application areas
    • Automotive
    • Glass
    • Wood and composite materials
Vue Debug
Color (Mode: OR)
Material (Mode: OR)
Fixing thread (Mode: OR)
Shore hardness (Mode: OR)
Diameter [mm]
Volume [cm³]
Weight [kg]
Reduced view
Installation size: ZFCF30
Order-No.DiameterMaterialFixing thread
ZFCF30-N30 [mm]NBR
ZFCF30-N-14F30 [mm]NBRG1/4" internal
ZFCF30-N-18F30 [mm]NBRG1/8" internal
ZFCF30-N-M10M30 [mm]NBRM10 external
ZFCF30-PU30 [mm]Polyurethan
ZFCF30-PU-14F30 [mm]PolyurethanG1/4" internal
ZFCF30-PU-14M30 [mm]PolyurethanG1/4" external
ZFCF30-PU-18F30 [mm]PolyurethanG1/8" internal
ZFCF30-PU-M10M30 [mm]PolyurethanM10 external
ZFCF30-S30 [mm]Silicone
ZFCF30-S-14F30 [mm]SiliconeG1/4" internal
ZFCF30-S-14M30 [mm]SiliconeG1/4" external
ZFCF30-S-18F30 [mm]SiliconeG1/8" internal
Installation size: ZFCF40
Order-No.DiameterMaterialFixing thread
ZFCF40-N40 [mm]NBR
ZFCF40-N-14F40 [mm]NBRG1/4" internal
ZFCF40-N-18F40 [mm]NBRG1/8" internal
ZFCF40-N-M10M40 [mm]NBRM10 external
ZFCF40-PU40 [mm]Polyurethan
ZFCF40-PU-14F40 [mm]PolyurethanG1/4" internal
ZFCF40-PU-14M40 [mm]PolyurethanG1/4" external
ZFCF40-PU-18F40 [mm]PolyurethanG1/8" internal
ZFCF40-PU-38M40 [mm]PolyurethanG3/8" external
ZFCF40-PU-M10M40 [mm]PolyurethanM10 external
ZFCF40-S40 [mm]Silicone
ZFCF40-S-18F40 [mm]SiliconeG1/8" internal
ZFCF40-S-M10M40 [mm]SiliconeM10 external
Installation size: ZFCF50
Order-No.DiameterMaterialFixing thread
ZFCF50-N50 [mm]NBR
ZFCF50-N-18F50 [mm]NBRG1/8" internal
ZFCF50-N-38F50 [mm]NBRG3/8" internal
ZFCF50-N-38M50 [mm]NBRG3/8" external
ZFCF50-N-M10M50 [mm]NBRM10 external
ZFCF50-PU50 [mm]Polyurethan
ZFCF50-PU-14F50 [mm]PolyurethanG1/4" internal
ZFCF50-PU-14M50 [mm]PolyurethanG1/4" external
ZFCF50-PU-18F50 [mm]PolyurethanG1/8" internal
ZFCF50-PU-38F50 [mm]PolyurethanG3/8" internal
ZFCF50-PU-38M50 [mm]PolyurethanG3/8" external
ZFCF50-PU-M10M50 [mm]PolyurethanM10 external
ZFCF50-S50 [mm]Silicone
ZFCF50-S-14F50 [mm]SiliconeG1/4" internal
ZFCF50-S-18F50 [mm]SiliconeG1/8" internal
ZFCF50-S-M10M50 [mm]SiliconeM10 external
Installation size: ZFCF60
Order-No.DiameterMaterialFixing thread
ZFCF60-N60 [mm]NBR
ZFCF60-N-12F60 [mm]NBRG1/2" internal
ZFCF60-N-14F60 [mm]NBRG1/4" internal
ZFCF60-N-18F60 [mm]NBRG1/8" internal
ZFCF60-N-38F60 [mm]NBRG3/8" internal
ZFCF60-N-38M60 [mm]NBRG3/8" external
ZFCF60-N-M10M60 [mm]NBRM10 external
ZFCF60-PU60 [mm]Polyurethan
ZFCF60-PU-12F60 [mm]PolyurethanG1/2" internal
ZFCF60-PU-14F60 [mm]PolyurethanG1/4" internal
ZFCF60-PU-14M60 [mm]PolyurethanG1/4" external
ZFCF60-PU-18F60 [mm]PolyurethanG1/8" internal
ZFCF60-PU-38F60 [mm]PolyurethanG3/8" internal
ZFCF60-PU-38M60 [mm]PolyurethanG3/8" external
ZFCF60-PU-M10M60 [mm]PolyurethanM10 external
ZFCF60-S60 [mm]Silicone
ZFCF60-S-12F60 [mm]SiliconeG1/2" internal
ZFCF60-S-14M60 [mm]SiliconeG1/4" external
ZFCF60-S-38F60 [mm]SiliconeG3/8" internal
ZFCF60-S-38M60 [mm]SiliconeG3/8" external
ZFCF60-S-M10M60 [mm]SiliconeM10 external
Installation size: ZFCF70
Order-No.DiameterMaterialFixing thread
ZFCF70-N-12F70 [mm]NBRG1/2" internal
ZFCF70-N-14M70 [mm]NBRG1/4" external
ZFCF70-N-18F70 [mm]NBRG1/8" internal
ZFCF70-N-38F70 [mm]NBRG3/8" internal
ZFCF70-N-M10M70 [mm]NBRM10 external
ZFCF70-PU70 [mm]Polyurethan
ZFCF70-PU-12F70 [mm]PolyurethanG1/2" internal
ZFCF70-PU-14M70 [mm]PolyurethanG1/4" external
ZFCF70-PU-18F70 [mm]PolyurethanG1/8" internal
ZFCF70-PU-38F70 [mm]PolyurethanG3/8" internal
ZFCF70-PU-38M70 [mm]PolyurethanG3/8" external
ZFCF70-PU-M10M70 [mm]PolyurethanM10 external
ZFCF70-S70 [mm]Silicone
ZFCF70-S-12F70 [mm]SiliconeG1/2" internal
ZFCF70-S-14M70 [mm]SiliconeG1/4" external
Installation size: ZFCF80
Order-No.DiameterMaterialFixing thread
ZFCF80-N80 [mm]NBR
ZFCF80-N-12F80 [mm]NBRG1/2" internal
ZFCF80-N-14M80 [mm]NBRG1/4" external
ZFCF80-N-18F80 [mm]NBRG1/8" internal
ZFCF80-N-38F80 [mm]NBRG3/8" internal
ZFCF80-N-M10M80 [mm]NBRM10 external
ZFCF80-PU80 [mm]Polyurethan
ZFCF80-PU-12F80 [mm]PolyurethanG1/2" internal
ZFCF80-PU-14F80 [mm]PolyurethanG1/4" internal
ZFCF80-PU-14M80 [mm]PolyurethanG1/4" external
ZFCF80-PU-18F80 [mm]PolyurethanG1/8" internal
ZFCF80-PU-38F80 [mm]PolyurethanG3/8" internal
ZFCF80-PU-38M80 [mm]PolyurethanG3/8" external
ZFCF80-PU-M10M80 [mm]PolyurethanM10 external
ZFCF80-S80 [mm]Silicone
ZFCF80-S-12F80 [mm]SiliconeG1/2" internal
ZFCF80-S-14M80 [mm]SiliconeG1/4" external
ZFCF80-S-18F80 [mm]SiliconeG1/8" internal
ZFCF80-S-38F80 [mm]SiliconeG3/8" internal
Installation size: ZFCF100
Order-No.DiameterMaterialFixing thread
ZFCF100-N100 [mm]NBR
ZFCF100-N-12F100 [mm]NBRG1/2" internal
ZFCF100-N-14F100 [mm]NBRG1/4" internal
ZFCF100-N-14M100 [mm]NBRG1/4" external
ZFCF100-N-18F100 [mm]NBRG1/8" internal
ZFCF100-N-38F100 [mm]NBRG3/8" internal
ZFCF100-N-M10M100 [mm]NBRM10 external
ZFCF100-PU100 [mm]Polyurethan
ZFCF100-PU-12F100 [mm]PolyurethanG1/2" internal
ZFCF100-PU-14F100 [mm]PolyurethanG1/4" internal
ZFCF100-PU-14M100 [mm]PolyurethanG1/4" external
ZFCF100-PU-18F100 [mm]PolyurethanG1/8" internal
ZFCF100-PU-38F100 [mm]PolyurethanG3/8" internal
ZFCF100-PU-38M100 [mm]PolyurethanG3/8" external
ZFCF100-PU-M10M100 [mm]PolyurethanM10 external
ZFCF100-S100 [mm]Silicone
ZFCF100-S-12F100 [mm]SiliconeG1/2" internal
ZFCF100-S-38M100 [mm]SiliconeG3/8" external
Installation size: ZFCF125
Order-No.DiameterMaterialFixing thread
ZFCF125-N125 [mm]NBR
ZFCF125-N-12F125 [mm]NBRG1/2" internal
ZFCF125-N-18F125 [mm]NBRG1/8" internal
ZFCF125-N-38F125 [mm]NBRG3/8" internal
ZFCF125-N-38M125 [mm]NBRG3/8" external
ZFCF125-N-M10M125 [mm]NBRM10 external
ZFCF125-PU125 [mm]Polyurethan
ZFCF125-PU-12F125 [mm]PolyurethanG1/2" internal
ZFCF125-PU-14F125 [mm]PolyurethanG1/4" internal
ZFCF125-PU-14M125 [mm]PolyurethanG1/4" external
ZFCF125-PU-18F125 [mm]PolyurethanG1/8" internal
ZFCF125-PU-38F125 [mm]PolyurethanG3/8" internal
ZFCF125-PU-38M125 [mm]PolyurethanG3/8" external
ZFCF125-PU-M10M125 [mm]PolyurethanM10 external
ZFCF125-S125 [mm]Silicone
ZFCF125-S-12F125 [mm]SiliconeG1/2" internal
ZFCF125-S-38F125 [mm]SiliconeG3/8" internal
ZFCF125-S-M10M125 [mm]SiliconeM10 external
