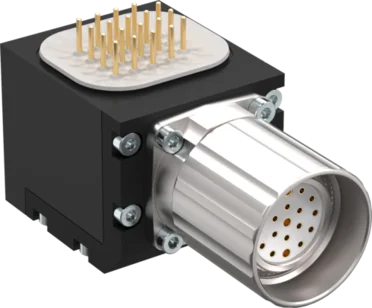

WER3000LSI19-00
Energy element
Series WER3000
- Fluid and electrical energy transfer
- Standardised and packaged
- Short set up time for maintenance work
- Custom-specifically modifiable
Technical Data
| Function | Signal current |
| No. of contacts | 19 |
| Fixing thread | M23 |
| Series | WER3000 |
| Transmission mode | electrical |
| Compatible with installation size | WPR5100 / WPR5125 / WPR5160 / WPR5200 / WWR1160 / WWR1200 |
| Compatible with | Loose part |
| Connection type | Plug-in Connector |
| Nominal current | 6 [A] |
| Supply voltage | 63 [V] |
| Connection type | Socket |
| Connection type | Round plug |
| Joining force | 70 [N] |
| Release force | 50 [N] |
| Protection to IEC 60529 | IP54 |
| Weight | 0.14 [kg] |
Suitable fixed part
| No. of contacts | Connection type | Fixing thread | ||
|---|---|---|---|---|

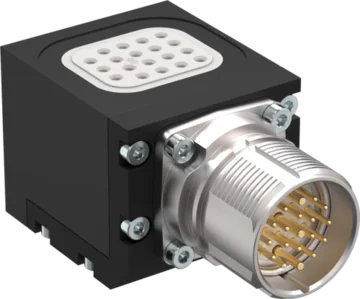

| WER3000FSI19-00 | 19 | Round plug | M23 |  |

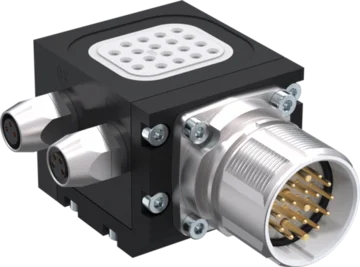

| WER3000FSI14-01-A | 14+5 Sensoric | Round plug | M23 |  |
| WER3000FSI14-02-A | 14+5 Sensoric | Round plug | M23 |  |
