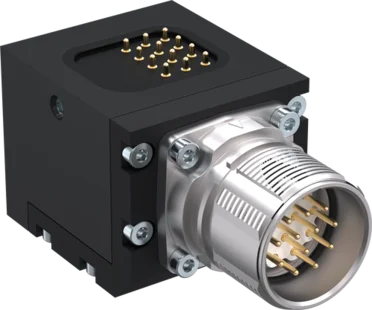

WER3000FSI12-09-A
Energy element
Series WER3000
- Fluid and electrical energy transfer
- Standardised and packaged
- Short set up time for maintenance work
- Custom-specifically modifiable
Technical Data
| Function | Signal current |
| No. of contacts | 12 |
| Fixing thread | M23 |
| Series | WER3000 |
| Transmission mode | electrical |
| Compatible with installation size | WPR5100 / WPR5125 / WPR5160 / WPR5200 / WWR1160 / WWR1200 |
| Compatible with | Fixed part |
| Connection type | Spring contacts |
| Nominal current | 3 [A] |
| Supply voltage | 60 [V] |
| Connection type | Male |
| Connection type | Round plug |
| Joining force | 12 [N] |
| Protection to IEC 60529 | IP54 |
| Weight | 0.13 [kg] |
Suitable loose part
| No. of contacts | Connection type | Fixing thread | ||
|---|---|---|---|---|

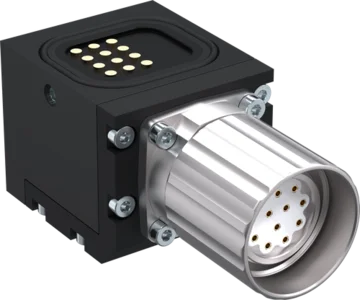

| WER3000LSI12-09-A | 12 | Round plug | M23 |  |
| WER3000LLN00-00-A |  | |||

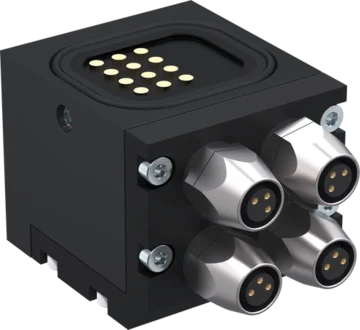

| WER3000LSI04-15-A | 4x3 | Round plug | M8 |  |

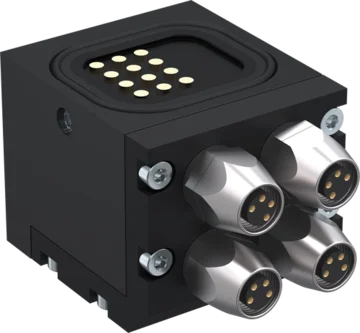

| WER3000LSI08-15-A | 4x4 | Round plug | M8 |  |
