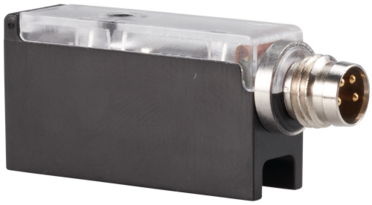

VS001ES-E2
Sensing units
Series VS0001
- Special features
Switching points adjustable via teach button Two digital switching outputs Vertical or horizontal fixing Electronic vacuum sensor 200 mA switching circuit
Technical Data
| Measuring medium | non-aggressive gases; dry, oil-free air |
| Measuring range | -1...0 [bar] |
| Max. safe overpressure | 5 [bar] |
| Repetition accuracy | +/- 1% from measuring range [%] |
| Hysteresis fest | 20 [mbar] |
| Output signal | 2 digital |
| Switching capacity | 200 [mA] |
| Status indication | LED |
| Electrical connection | Connector M8, 4-pole |
| Voltage | 10-30 [V DC] |
| Current consumption | 20 [mA] |
| Degree of protection | 40 [IP] |
| Temperature deviation | +/- 3% from measuring range |
| Allowable ambient temperature | 0...60 [°C] |
| Type of construction | vertical |
| G1 | M8 |
| Dimension A | 36.2 [mm] |
| Dimension B | 10 [mm] |
| Dimension H | 17.5 [mm] |
| Dimension L | 43 [mm] |
| Weight | 0.006 [kg] |
