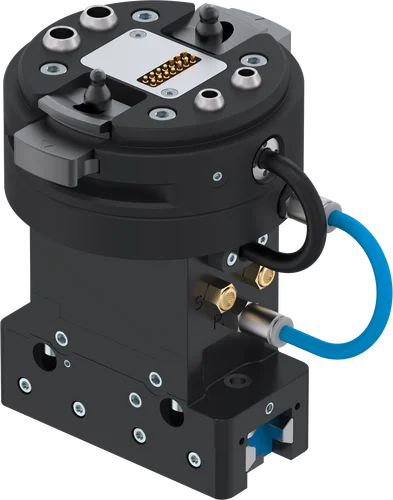

2-Jaw Parallel Grippers
Series LWR
- Pneumatic drive combined with IO-Link technology
- Up to 50% reduction in cycle times and up to 90% less compressed air usage
- Connection over just one pneumatic line and IO-Link cable
- Integrated valve technology, sensor technology, status display, pressure monitoring and temperature monitoring
- Part detection down to +/- 0.05 mm for a tolerance range that can be taught for any value
- 32 workpieces data sets can be programmed
- Up to 30 million cycles without maintenance
| Order-No. | Control | Operating temperature | Protection to IEC 60529 | |
|---|---|---|---|---|
| LWR50L-24-00001-A | IO-Link | +5 ... +50 [°C] | IP40 | |
| LWR50L-24-00002-A | IO-Link | +5 ... +50 [°C] | IP40 | |
| LWR50L-24-00003-A | IO-Link | +5 ... +50 [°C] | IP40 | |
| LWR50L-24-00004-A | IO-Link | +5 ... +50 [°C] | IP40 | |
| LWR50L-24-00005-A | IO-Link | +5 ... +50 [°C] | IP40 | |
| LWR50L-24-00006-A | IO-Link | +5 ... +50 [°C] | IP40 |
