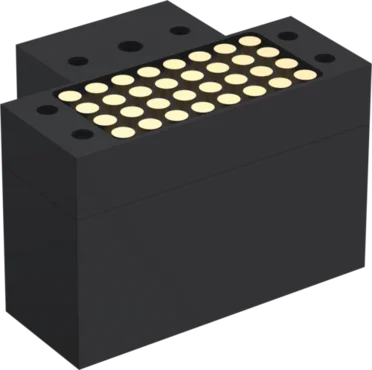

WER2000LSI32-05-B
Energy element
Series WER2000
- Fluid and electrical energy transfer
- Standardised and packaged
- Short set up time for maintenance work
- Custom-specifically modifiable
Technical Data
| Compatible with | Loose part |
| Connection type | Spring contacts |
| Supply voltage | 60 [V] |
| Nominal current | 3 [A] |
| No. of contacts | 32 |
| Function | Signal current |
| Series | WER2000 |
| Transmission mode | electrical |
| Connection type | Exposed leads |
| Connection type | Customizable |
| Joining force | 32 [N] |
| Protection to IEC 60529 | IP40 |
| Weight | 0.02 [kg] |
Suitable fixed part
| No. of contacts | Connection type | Fixing thread | ||
|---|---|---|---|---|
| WER2000FSI32-05-B | 32 | Exposed leads |  |
