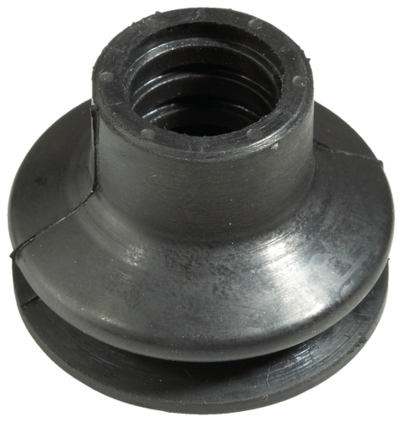

Suction cups
Series SFK
- Range of applications
Slightly curved, inclined and uneven surfaces - Special features
Compensates differences in height The suction process creates a lifting effect
Installation Size: SFK24 | ||||
| Order-No. | Vacuum force theoretical | Lifting force | Volume | |
|---|---|---|---|---|
| SFK24 | 36 [N] | 11 [N] | 3.8 [cm³] | |
| SFK24L | 36 [N] | 11 [N] | 3.8 [cm³] | |
| SFK24SI | 36 [N] | 11 [N] | 3.8 [cm³] | |
| SFK24NA | 36 [N] | 11 [N] | 3.8 [cm³] | |
| SFK24SA | 36 [N] | 11 [N] | 3.8 [cm³] | |
| SFK24TPU | 36 [N] | 11 [N] | 3.8 [cm³] | |
Installation Size: SFK30 | ||||
| Order-No. | Vacuum force theoretical | Lifting force | Volume | |
| SFK30 | 57 [N] | 14.5 [N] | 5.8 [cm³] | |
| SFK30L | 57 [N] | 14.5 [N] | 5.8 [cm³] | |
| SFK30SI | 57 [N] | 14.5 [N] | 5.8 [cm³] | |
| SFK30NA | 57 [N] | 14.5 [N] | 5.8 [cm³] | |
| SFK30SA | 57 [N] | 14.5 [N] | 5.8 [cm³] | |
| SFK30TPU | 57 [N] | 14.5 [N] | 5.8 [cm³] | |
Installation Size: SFK40 | ||||
| Order-No. | Vacuum force theoretical | Lifting force | Volume | |
| SFK40 | 101 [N] | 28 [N] | 10.4 [cm³] | |
| SFK40L | 101 [N] | 28 [N] | 10.4 [cm³] | |
| SFK40SI | 101 [N] | 28 [N] | 10.4 [cm³] | |
| SFK40NA | 101 [N] | 28 [N] | 10.4 [cm³] | |
| SFK40SA | 101 [N] | 28 [N] | 10.4 [cm³] | |
| SFK40TPU | 101 [N] | 28 [N] | 10.4 [cm³] | |
