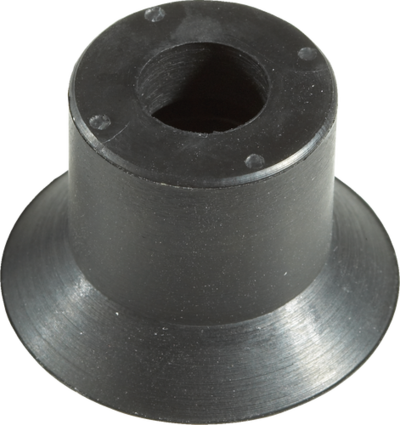

Suction cups
Series SM
- Range of applications
Flat and slightly curved surfaces - Special features
Suction diameter from 1 mm - Product components
Suction cup + adapter (connection thread)
Installation Size: SM1 | ||||
| Order-No. | Vacuum force theoretical | Volume | Connection type | |
|---|---|---|---|---|
| SM1 | 0.1 [N] | 0.01 [cm³] | 4/6 | |
| SM1L | 0.1 [N] | 0.01 [cm³] | 4/6 | |
| SM1SI | 0.1 [N] | 0.01 [cm³] | 4/6 | |
| SM1NA | 0.1 [N] | 0.01 [cm³] | 4/6 | |
| SM1SA | 0.1 [N] | 0.01 [cm³] | 4/6 | |
| SM1TPU | 0.1 [N] | 0.01 [cm³] | 4/6 | |
Installation Size: SM2 | ||||
| Order-No. | Vacuum force theoretical | Volume | Connection type | |
| SM2 | 0.3 [N] | 0.01 [cm³] | 4/6 | |
| SM2L | 0.3 [N] | 0.01 [cm³] | 4/6 | |
| SM2SI | 0.3 [N] | 0.01 [cm³] | 4/6 | |
| SM2NA | 0.3 [N] | 0.01 [cm³] | 4/6 | |
| SM2SA | 0.3 [N] | 0.01 [cm³] | 4/6 | |
| SM2TPU | 0.3 [N] | 0.01 [cm³] | 4/6 | |
Installation Size: SM3 | ||||
| Order-No. | Vacuum force theoretical | Volume | Connection type | |
| SM3 | 0.6 [N] | 0.01 [cm³] | 4/6 | |
| SM3L | 0.6 [N] | 0.01 [cm³] | 4/6 | |
| SM3SI | 0.6 [N] | 0.01 [cm³] | 4/6 | |
| SM3NA | 0.6 [N] | 0.01 [cm³] | 4/6 | |
| SM3SA | 0.6 [N] | 0.01 [cm³] | 4/6 | |
| SM3TPU | 0.6 [N] | 0.01 [cm³] | 4/6 | |
Installation Size: SM4 | ||||
| Order-No. | Vacuum force theoretical | Volume | Connection type | |
| SM4 | 1 [N] | 0.01 [cm³] | 4/6 | |
| SM4L | 1 [N] | 0.01 [cm³] | 4/6 | |
| SM4SI | 1 [N] | 0.01 [cm³] | 4/6 | |
| SM4NA | 1 [N] | 0.01 [cm³] | 4/6 | |
| SM4SA | 1 [N] | 0.01 [cm³] | 4/6 | |
| SM4TPU | 1 [N] | 0.01 [cm³] | 4/6 | |
Installation Size: SM5 | ||||
| Order-No. | Vacuum force theoretical | Volume | Connection type | |
| SM5 | 1.6 [N] | 0.02 [cm³] | 4/6 | |
| SM5L | 1.6 [N] | 0.02 [cm³] | 4/6 | |
| SM5SI | 1.6 [N] | 0.02 [cm³] | 4/6 | |
| SM5NA | 1.6 [N] | 0.02 [cm³] | 4/6 | |
| SM5SA | 1.6 [N] | 0.02 [cm³] | 4/6 | |
| SM5TPU | 1.6 [N] | 0.02 [cm³] | 4/6 | |
Installation Size: SM6 | ||||
| Order-No. | Vacuum force theoretical | Volume | Connection type | |
| SM6 | 2.3 [N] | 0.03 [cm³] | 4/6 | |
| SM6L | 2.3 [N] | 0.03 [cm³] | 4/6 | |
| SM6SI | 2.3 [N] | 0.03 [cm³] | 4/6 | |
| SM6NA | 2.3 [N] | 0.03 [cm³] | 4/6 | |
| SM6SA | 2.3 [N] | 0.03 [cm³] | 4/6 | |
| SM6TPU | 2.3 [N] | 0.03 [cm³] | 4/6 | |
Installation Size: SM8 | ||||
| Order-No. | Vacuum force theoretical | Volume | Connection type | |
| SM8 | 4 [N] | 0.1 [cm³] | 5 | |
| SM8L | 4 [N] | 0.1 [cm³] | 5 | |
| SM8SI | 4 [N] | 0.1 [cm³] | 5 | |
| SM8NA | 4 [N] | 0.1 [cm³] | 5 | |
| SM8SA | 4 [N] | 0.1 [cm³] | 5 | |
| SM8TPU | 4 [N] | 0.1 [cm³] | 5 | |
Installation Size: SM10 | ||||
| Order-No. | Vacuum force theoretical | Volume | Connection type | |
| SM10 | 6 [N] | 0.2 [cm³] | 5 | |
| SM10L | 6 [N] | 0.2 [cm³] | 5 | |
| SM10SI | 6 [N] | 0.2 [cm³] | 5 | |
| SM10NA | 6 [N] | 0.2 [cm³] | 5 | |
| SM10SA | 6 [N] | 0.2 [cm³] | 5 | |
| SM10TPU | 6 [N] | 0.2 [cm³] | 5 | |
Installation Size: SM12 | ||||
| Order-No. | Vacuum force theoretical | Volume | Connection type | |
| SM12 | 9 [N] | 0.2 [cm³] | 5 | |
| SM12L | 9 [N] | 0.2 [cm³] | 5 | |
| SM12SI | 9 [N] | 0.2 [cm³] | 5 | |
| SM12NA | 9 [N] | 0.2 [cm³] | 5 | |
| SM12SA | 9 [N] | 0.2 [cm³] | 5 | |
| SM12TPU | 9 [N] | 0.2 [cm³] | 5 | |
Installation Size: SM15 | ||||
| Order-No. | Vacuum force theoretical | Volume | Connection type | |
| SM15 | 14 [N] | 0.4 [cm³] | 1 | |
| SM15L | 14 [N] | 0.4 [cm³] | 1 | |
| SM15SI | 14 [N] | 0.4 [cm³] | 1 | |
| SM15NA | 14 [N] | 0.4 [cm³] | 1 | |
| SM15SA | 14 [N] | 0.4 [cm³] | 1 | |
| SM15TPU | 14 [N] | 0.4 [cm³] | 1 | |
Installation Size: SM18 | ||||
| Order-No. | Vacuum force theoretical | Volume | Connection type | |
| SM18 | 20 [N] | 0.5 [cm³] | 1 | |
| SM18L | 20 [N] | 0.5 [cm³] | 1 | |
| SM18SI | 20 [N] | 0.5 [cm³] | 1 | |
| SM18NA | 20 [N] | 0.5 [cm³] | 1 | |
| SM18SA | 20 [N] | 0.5 [cm³] | 1 | |
| SM18TPU | 20 [N] | 0.5 [cm³] | 1 | |
Installation Size: SM20 | ||||
| Order-No. | Vacuum force theoretical | Volume | Connection type | |
| SM20 | 25 [N] | 0.6 [cm³] | 1 | |
| SM20L | 25 [N] | 0.6 [cm³] | 1 | |
| SM20SI | 25 [N] | 0.6 [cm³] | 1 | |
| SM20NA | 25 [N] | 0.6 [cm³] | 1 | |
| SM20SA | 25 [N] | 0.6 [cm³] | 1 | |
| SM20TPU | 25 [N] | 0.6 [cm³] | 1 | |
Installation Size: SM25 | ||||
| Order-No. | Vacuum force theoretical | Volume | Connection type | |
| SM25 | 39 [N] | 1.3 [cm³] | 3 | |
| SM25L | 39 [N] | 1.3 [cm³] | 3 | |
| SM25SI | 39 [N] | 1.3 [cm³] | 3 | |
| SM25NA | 39 [N] | 1.3 [cm³] | 3 | |
| SM25SA | 39 [N] | 1.3 [cm³] | 3 | |
| SM25TPU | 39 [N] | 1.3 [cm³] | 3 | |
Installation Size: SM30 | ||||
| Order-No. | Vacuum force theoretical | Volume | Connection type | |
| SM30 | 57 [N] | 1.8 [cm³] | 3 | |
| SM30L | 57 [N] | 1.8 [cm³] | 3 | |
| SM30SI | 57 [N] | 1.8 [cm³] | 3 | |
| SM30NA | 57 [N] | 1.8 [cm³] | 3 | |
| SM30SA | 57 [N] | 1.8 [cm³] | 3 | |
| SM30TPU | 57 [N] | 1.8 [cm³] | 3 | |
Installation Size: SM35 | ||||
| Order-No. | Vacuum force theoretical | Volume | Connection type | |
| SM35 | 77 [N] | 2.6 [cm³] | 3 | |
| SM35L | 77 [N] | 2.6 [cm³] | 3 | |
| SM35SI | 77 [N] | 2.6 [cm³] | 3 | |
| SM35NA | 77 [N] | 2.6 [cm³] | 3 | |
| SM35SA | 77 [N] | 2.6 [cm³] | 3 | |
| SM35TPU | 77 [N] | 2.6 [cm³] | 3 | |
